WHIRLPOOL 330031 RANGE SURFACE ELEMENT RECEPTACLE (GENUINE OEM PART) - Parts Solution Group

WHIRLPOOL 330031 Range Surface Element Receptacle and Wire Kit - Genuine OEM Part

$16.21

*All prices and availability are subject to change without notice. Errors and omissions excepted.

  • Description: WHIRLPOOL 330031 Range Surface Element Receptacle and Wire Kit
    Fits Brand: WHIRLPOOL / MAYTAG / AMANA / KENMORE
    Manufacturer: WHIRLPOOL
    Manufacturer Part Number: 330031
    OEM Status: Genuine OEM Part
    Product Type: Range Surface Element Receptacle and Wire Kit
    The Whirlpool 330031 kit repairs a damaged plug-in surface-element receptacle and its high-temperature wiring connection on compatible electric ranges.
    The factory kit includes the receptacle with wires plus connection materials. Burned terminals are often caused by a loose or overheated connection; inspect the mating surface-element terminals before completing the repair.
    Manufacturer Part Numbers / Cross-References: 330031, W10841094, 99989649, 7401P01460, 7406132, 7112P05960, WB17X210, W10116803, FSP330031, 74-06-132, 71930, 5303935058

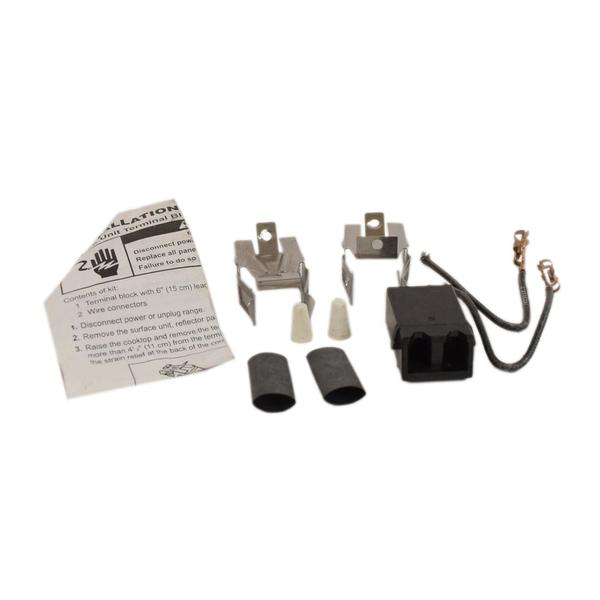

    What This Listing Includes: One Whirlpool 330031 element receptacle and wire repair kit including receptacle with lead wires, wire nuts, and heat-shrink tubing as factory supplied.
    Possible Compatible Models Include:
    RF302BXYN0; RF315PXDZ0; RF4700XWW1; RM980PXYW1
    Compatibility Note: 330031 is used across select plug-in electric surface-element systems. Verify the complete range/cooktop model and original receptacle configuration before ordering.
    Important Safety Note: Disconnect the range from electrical power at the breaker before servicing surface-element wiring. This repair involves line-voltage and high-temperature wiring.
    Installation Note: Remove the damaged receptacle, cut back overheated wire to sound conductor as required by the service procedure, make secure high-temperature connections using the supplied materials, insulate the repair correctly, and confirm the surface element fits tightly.

  • Product Specifications:

    • Product Type: Range Surface Element Receptacle and Wire Kit
    • Appliance Type: Electric Range / Cooktop
    • Fits Brand: WHIRLPOOL / MAYTAG / AMANA / KENMORE
    • Manufacturer: WHIRLPOOL
    • Manufacturer Part Number: 330031
    • OEM Status: Genuine OEM Part
    • Manufacturer Part Numbers / Cross-References: 330031, W10841094, 99989649, 7401P01460, 7406132, 7112P05960, WB17X210, W10116803, FSP330031, 74-06-132, 71930, 5303935058
    • Kit Contents: Receptacle with wires, wire nuts, and heat-shrink tubing
