WHIRLPOOL W11196317 DISHWASHER DOOR SEAL (GENUINE OEM PART) - Parts Solution Group

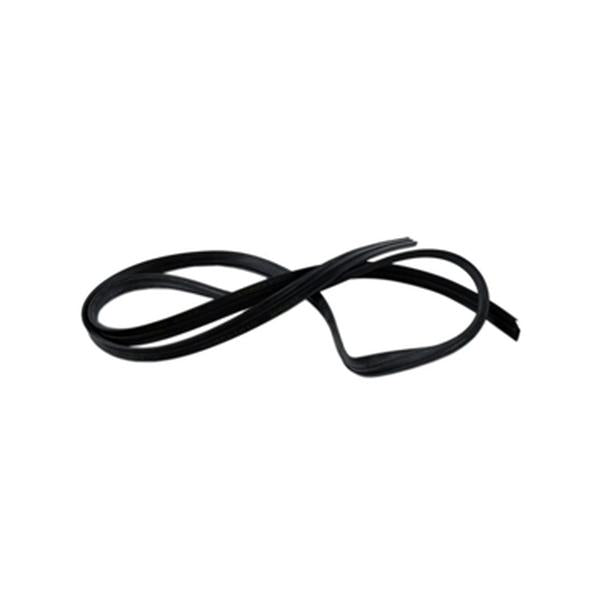

WHIRLPOOL W11196317 DISHWASHER DOOR SEAL / GASKET - 72.12 INCH - GENUINE OEM PART

$75.72 $98.70

*All prices and availability are subject to change without notice. Errors and omissions excepted.

  • Description: Whirlpool W11196317 genuine OEM Dishwasher Door Seal / Gasket - 72.12 Inch.
    Fits Brand: WHIRLPOOL / MAYTAG / KITCHENAID / JENN-AIR / AMANA / KENMORE (MODEL-DEPENDENT)
    Manufacturer: WHIRLPOOL
    Manufacturer Part Number: W11196317
    OEM Status: Genuine OEM Part
    Product Type: Dishwasher Door Seal / Gasket - 72.12 Inch
    Appliance / Application: Dishwasher
    Installation Location: Around the dishwasher tub opening where the door closes against the cabinet/tub
    Function: Seals the dishwasher door opening to help contain wash water and steam during operation.
    Critical Fit / Identification Details: Door seal/gasket approximately 72.12 inches long. Match complete model and gasket profile/installation path.
    Manufacturer Part Numbers / Cross-References: W11196317, W11190760, W10112096, WPW10112096, 8193942, 8531629, 8193906, 8268938, 9742612
    What This Listing Includes: One genuine OEM W11196317 dishwasher door seal / gasket - 72.12 inch as supplied for the manufacturer service application; adjacent parts/hardware are not included unless specifically stated.
    Representative Compatible Models (Not Exhaustive): 66513783K603, 66513859K600, 66516979201, KUDI02IRBT4, KUDI02IRWH3, KUDS01ILWH1
    Model Evidence Note: Verified representative models. Model examples are not exhaustive. Always match the complete model number, including suffix/revision where present, against manufacturer service information.
    Correct Part / Compatibility Check: Verify the complete model number, exact door/opening position, seal profile/dimensions and mounting design. Similar-looking seals are frequently not interchangeable.
    Distinguish From Similar Parts: Do not confuse this tub/door-opening seal with the lower door seal, splash shield or sound insulation.
    Possible Related Symptoms / Reasons to Inspect: Visible tears, deformation, air/water leakage, moisture or frost at the sealing area after confirming door/alignment conditions.
    Important Safety / Service Note: Disconnect appliance power before service and follow the manufacturer service procedure for the exact model. Use qualified service where required.
    Ordering Note: Symptoms can identify a system to inspect, but they do not prove this specific component is defective. Confirm the OEM part number or model-specific parts diagram before ordering.

  • Specifications & Compatibility:

    • Manufacturer: WHIRLPOOL
    • Manufacturer Part Number: W11196317
    • OEM Status: Genuine OEM Part
    • Product Type: Dishwasher Door Seal / Gasket - 72.12 Inch
    • Appliance / Application: Dishwasher
    • Installation Location: Around the dishwasher tub opening where the door closes against the cabinet/tub
    • Cross-References: W11196317, W11190760, W10112096, WPW10112096, 8193942, 8531629, 8193906, 8268938, 9742612
    • Critical Fit Details: Door seal/gasket approximately 72.12 inches long. Match complete model and gasket profile/installation path.
