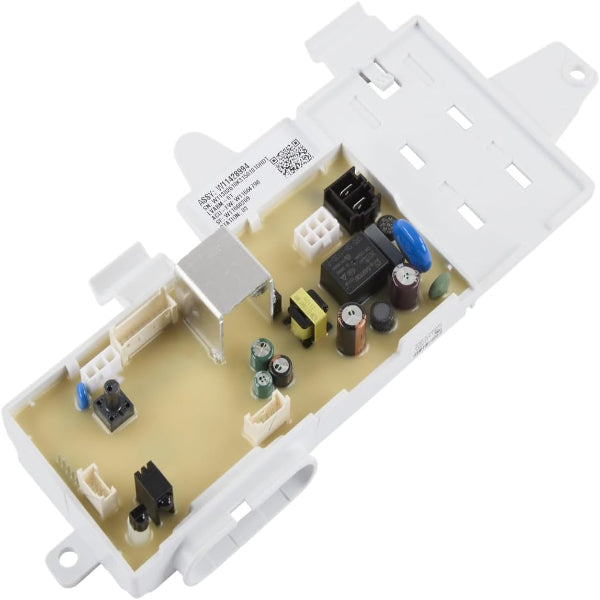

WHIRLPOOL W11513246 Top-Load Washer Programmed ACU Main Control Board - Genuine OEM Part

WHIRLPOOL W11513246 Top-Load Washer Programmed ACU Main Control Board - Genuine OEM Part

$166.77 $202.03

*All prices and availability are subject to change without notice. Errors and omissions excepted.

  • Description: Whirlpool W11513246 Genuine OEM Top-Load Washer Programmed ACU Main Control Board
    Fits Brand: WHIRLPOOL / CROSLEY
    Manufacturer: WHIRLPOOL
    Manufacturer Part Number: W11513246
    OEM Status: Genuine OEM Part
    Product Type: Washer Programmed Appliance Control Unit (ACU)
    The Whirlpool W11513246 is a programmed appliance control unit (ACU) that manages major washer functions on compatible top-load washer platforms.
    The control receives input from switches and sensors and commands components such as the water valves, drive system, drain system, and lid-lock circuit according to the selected cycle.
    Electronic control boards are highly model-specific and should be replaced only after the washer has been properly diagnosed. Wiring, sensors, power supply, and connected loads can produce symptoms that resemble a failed control.
    Manufacturer Part Numbers / Cross-References: W11513246, W11428994
    What This Listing Includes: One Whirlpool W11513246 programmed washer ACU / main control board.
    Possible Compatible Models Include:
    CAW45125LW0; WTW5010LW0; WTW5057LW0; WTW5015LW0
    Compatibility Note: W11513246 is specified for select Whirlpool/Crosley top-load washer models and replaces W11428994. Confirm the complete model and service diagnosis before ordering.
    Important Safety Note: Disconnect washer electrical power before accessing the control. Electronic components can be damaged by static electricity; handle the board by its edges and follow appropriate ESD precautions.
    Installation Note: Document all connector positions before removal, seat every harness connector fully on the replacement ACU, and follow the model-specific service procedure for any required calibration or diagnostic verification.

  • Product Specifications:

    • Product Type: Washer Programmed Appliance Control Unit (ACU)
    • Fits Brand: WHIRLPOOL / CROSLEY
    • Manufacturer: WHIRLPOOL
    • Manufacturer Part Number: W11513246
    • OEM Status: Genuine OEM Part
    • Manufacturer Part Numbers / Cross-References: W11513246, W11428994
    • Control Type: Programmed appliance control unit / main control board
    • Application: Top-load washer
    • Replaces / Supersedes: W11428994
    • Approximate Shipping Weight: Under 1 lb; listed at 454 g for shipping
