WHIRLPOOL W10823693 RANGE RADIANT SURFACE ELEMENT (8-IN) (GENUINE OEM PART) - Parts Solution Group

WHIRLPOOL W10823693 Range Surface Heating Element (Genuine OEM Part)

$137.71 $209.19

*All prices and availability are subject to change without notice. Errors and omissions excepted.

  • Description: WHIRLPOOL W10823693 genuine OEM Range Surface Heating Element.
    Fits Brand: WHIRLPOOL / MAYTAG / KITCHENAID / JENN-AIR / AMANA / KENMORE (MODEL-DEPENDENT)
    Manufacturer: WHIRLPOOL
    Manufacturer Part Number: W10823693
    OEM Status: Genuine OEM Part
    Product Type: Range Surface Heating Element
    Appliance / Application: Range
    Installation Location: At the model-defined heating position in the appliance.
    Function: Converts electrical energy into heat for the model-defined cooking, drying, defrost or wash function.

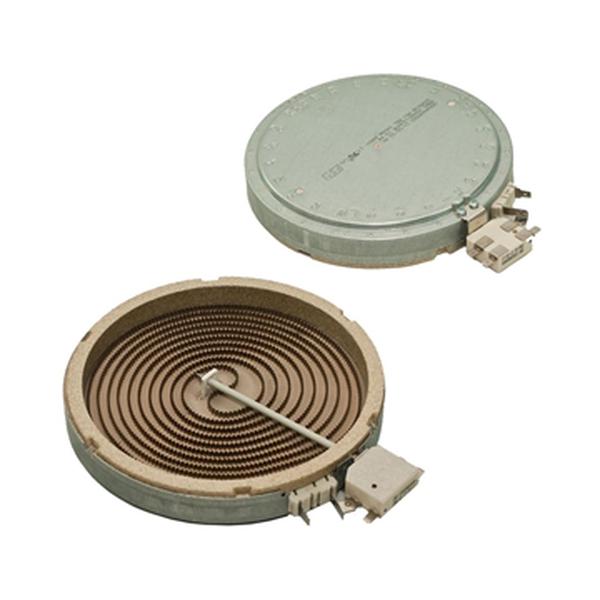

    Specific Identification Details: 8-inch radiant surface element with integrated limit switch.
    Critical Fit / Identification Details: Match the complete model, element position, geometry, terminal arrangement and any published voltage/wattage identification.
    Manufacturer Part Numbers / Cross-References: W10823693, 8185638, 8285468, WP8185638, 74007838, 3191982
    What This Listing Includes: One genuine OEM W10823693 range surface heating element.
    Representative Compatible Models: KECC508MBB01, KECC508MWW00, KECC568MSS00
    Model Evidence Note: These are representative positive examples only, not a complete fit list. Verify the complete model number, including suffix/revision, against current manufacturer parts information.
    Compatibility Basis: Public part-specific compatibility evidence; representative examples only.
    Correct Part / Compatibility Check: Confirm that W10823693 (or a verified manufacturer supersession shown above) is specified for the complete appliance model, then match the exact installation position and identification details before ordering.
    Distinguish From Similar Parts: Bake, broil, surface, dryer, dishwasher and defrost heaters are application- and position-specific.
    Possible Related Symptoms / Reasons to Inspect: No heat, insufficient heat or an electrically open/physically damaged element may justify diagnosis; controls and wiring must also be checked.
    Important Safety / Service Note: Disconnect power before service. Heating circuits can carry line voltage and remain hot after operation.
    Ordering Note: Symptoms can identify a system to inspect, but they do not prove this specific component is defective. Confirm the exact OEM part number and model-specific parts diagram/service information before ordering.

  • Specifications & Compatibility:

    • Manufacturer: WHIRLPOOL
    • Manufacturer Part Number: W10823693
    • OEM Status: Genuine OEM Part
    • Product Type: Range Surface Heating Element
    • Appliance / Application: Range
    • Installation Location: At the model-defined heating position in the appliance.
    • Cross-References: W10823693, 8185638, 8285468, WP8185638, 74007838, 3191982
    • Critical Fit Details: Match the complete model, element position, geometry, terminal arrangement and any published voltage/wattage identification.
